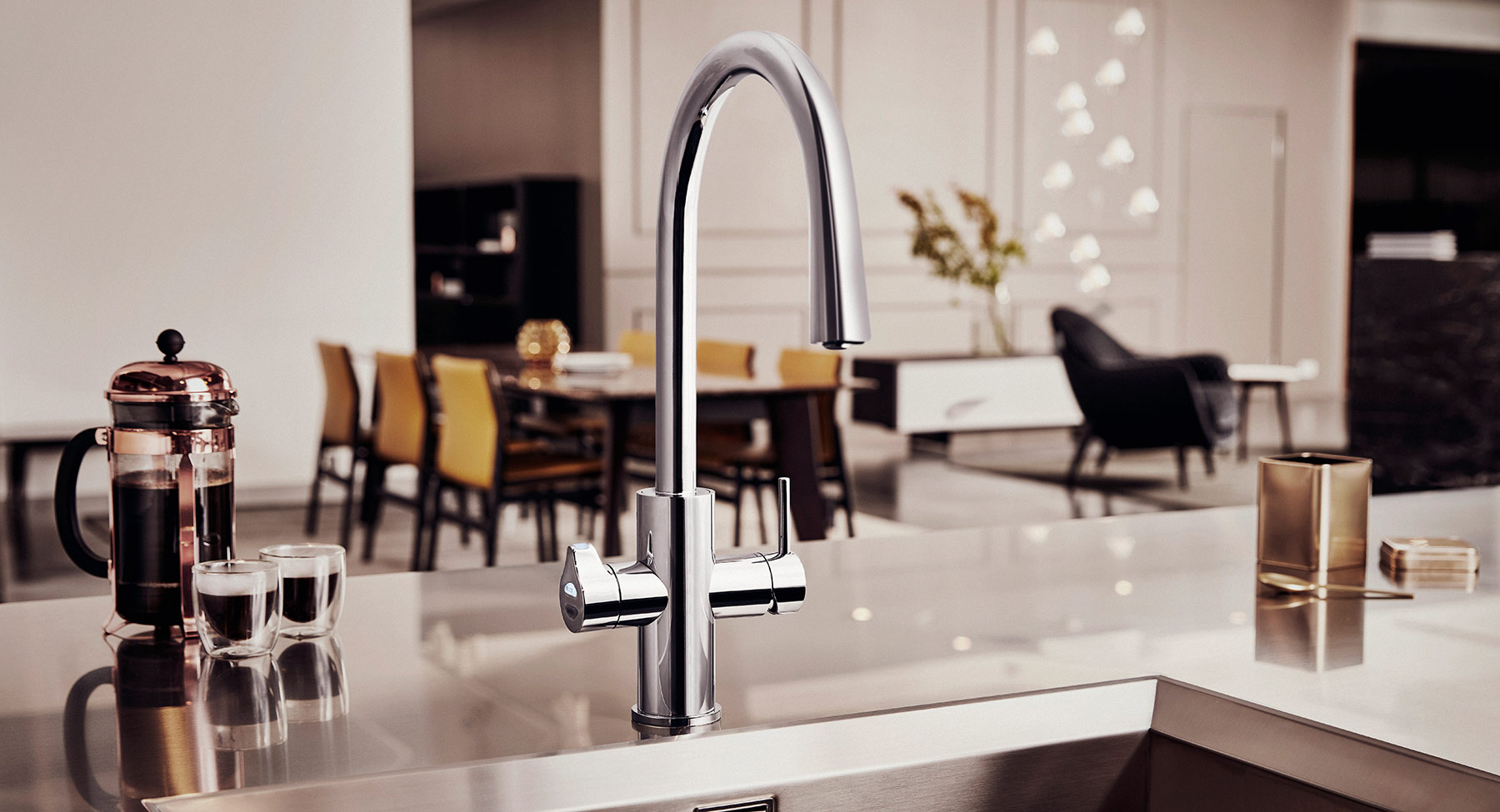

Deck Mounted All in One Filtered Faucet w/ Boiling, Chilled, Sparkling & Unfiltered Hot & Cold

For Residential Applications

Boiling Water Safety Lock

Cool Touch Tap

Smart Energy Saving Mode

Hole Size: 2in

Flow Rate: Max 1.8 GPM

Sparkling Water Flow Rate: 0.36 GPM

Mixer Type: Ceramic Disc Cartridge

Water Pressure: Min 30psi-Max 75psi, Min Flow 1 GPM

Water Connection: 2x1/2" BSP Isolation Valve Required within 3' of Installation

Integral Water Valves: Fitted with a Dual Check Valve and 50psi Pressure Limiting Valve

Water Supply Requirements: Potable Drinking Water

TDS: Min 50ppm-Max 120ppm

Integral Water Filter: 0.2 Micron, 1 Size- Replace Every 1500 Gallons or 12 Months

Power Rating: 110-120V, 60Hz, 1.25kW

Power Supply: 110-120V, 60Hz 15amp Power Supply w/ NEMA 5-15 Outlet

Dimension: 13.4in Wide x 18.2in Deep x 13.1in High

Min Air Gap: Clearances Are Required; 2" Left Side, 2" Right Side, 8" Above

CO2 Cylinder: 2x 1.5lb Beverage Grade Carbon Dioxide Cylinder

CO2 Capacity: Approx. 950 8oz Cups

CO2 Operating Pressure: Min 39psi-Max 43psi
